Features

A touch display makes the ST-F20 exceptionally easy to operate

The bright, easy-to-read display is operated by touch, making it as easy to use as a smartphone. In addition, the edge-to-edge all glass front makes it drip- and dust-proof, and makes cleaning a snap.

Durable, quiet, fan-less design

The fan-less design greatly reduces the openings that can allow dust and smoke to enter the unit and lead to failure. With no rotary fan noise, this unit is ideal for quiet environments.

In addition to the high performance CPU, a choice between HDD and SSD is available

A high-performance CPU and large memory, up to 8 GB, are combined to provide excellent performance and smooth operation. For mass storage you can choose between HDD and SSD.

dual-screen

A dual-screen configuration is available, to suit your shop’s environment.

tilt

The tilt-able display can be angled up　to 90 degrees for easy viewing.

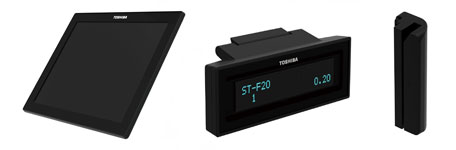

Various options

Various options such as customer displays and card readers are available.

Specifications

	ST-F20
CPU	Intel Celeron Quad Core J1900(2.00GHz)(fan-less)
DRAM	2GB/4GB(Max. 8GB) DDR III 1067/1333MHz, 1 slots
Storage	HDD:500GB x 1 or SSD:64GB x 1
TFT	15" XGA (1024 x 768)
Touch	Projective Capacitive Touch, 10 point multi-touch
LAN	10/100/1000 Base TX
RS-232C	2 x COM (RJ45),1 x COM (D-sub 9 male)
USB	4 x USB (2.0),1 x USB(3.0)
VGA	1 x VGA (D-sub 15pin famale) for 2nd Display
Drawer	1 x RJ-12 (EPSON type), 12V/24V selectable
Speaker	Yes
AC power supply	AC adapter
Cabinet color	Black / White
Dimension	365 (W) x 280 (D) x 341 (H) mm
Operating System	Windows 7,POS Ready7, Windows Embedded industry
Printer(Option)	TOSHIBA POS Printer (AC adapter required)
2nd Display(Option)	15" XGA (1024 x 768), with Resistive Touch / without Touch
Line customer display	20 x 2 Line,ANK
MCR(Option)	ISO Track 1,2,3

•
•
