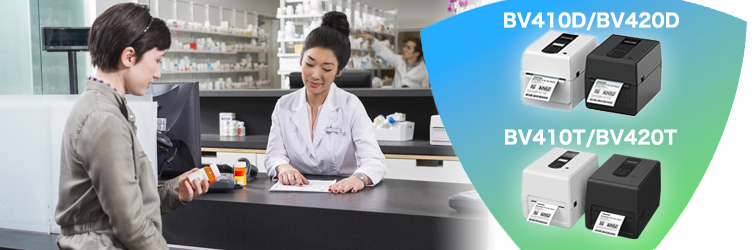

TOSHIBA BV400 Series
TOSHIBA BV400 series is an advanced entry printer with small footprint and compact & stylish body offering the operational convenience to the customers. The leading-edge printer series flexibly fits into a variety of workplaces and offers the enhanced connectivity with ease of integrating various network devices depending on the customer’s work environments. The excellent throughput and high-quality printing boost up the productivity with excellent cost performance.
Specifications
| BV410D | BV420D | BV410T | BV420T | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | GS | TS | GS | TS | GL | GS | TS | GS | TS |
| CHARACTERISTICS | |||||||||
| Print Method | Direct Thermal | Thermal Transfer, direct thermal | |||||||
| Dimensions (W x D x H) | 174 x 218 x 173 mm(6.85" x 8.59" x 6.81") | 174 x 288 x 173 mm(6.85" x 11.33" x 6.81") | 200 x 267 x 198.3 mm(7.87" x 10.51" x 7.81") | ||||||
| Weight | 2.0 kg (4.4 lb) | 2.6 kg (5.7 lb)? | 2.9 kg (6.4 lb)? | ||||||
| User Interface | 2 LEDs, 3 Keys, 128 x 64 dots Graphic LCD |
3 LEDs, 2 Keys | 2 LEDs, 3 Keys, 128 x 64 dots Graphic LCD |
3 LEDs, 2 Keys | |||||
| Operating Temp./Humidity | 5°C to 40°C (41°F to 104°F) 25% to 85% RH (no condensation) |
||||||||
| Power Supply | AC 100 to 240 V, 50/60 Hz (External AC adapter) | ||||||||
| Resolution | 203 dpi (8 dot/mm) | 300 dpi (11.8 dot/mm) | 203 dpi (8 dot/mm) | 300 dpi (11.8 dot/mm) | 203 dpi (8 dot/mm) | 203 dpi (8 dot/mm) | 300 dpi (11.8 dot/mm) | 203 dpi (8 dot/mm) | 300 dpi (11.8 dot/mm) |
| Print Speed (max) | 177.8 mm/sec. (7"/sec) | 127 mm/sec. (5"/sec) | 177.8 mm/sec. (7"/sec) | 127 mm/sec. (5"/sec) | 177.8 mm/sec. (7"/sec) | 177.8 mm/sec. (7"/sec) | 127 mm/sec. (5"/sec) | 177.8 mm/sec. (7"/sec) | 127 mm/sec. (5"/sec) |
| Print Width (max.) | 108 mm(4.25”) | 105.7 mm(4.16”) | 108 mm(4.25”) | 105.7 mm(4.16”) | 99 mm(3.89”) | 108 mm(4.25”) | 105.7 mm(4.16”) | 108 mm(4.25”) | 105.7 mm(4.16”) |
| Print Length (max.) | 997 mm(39.3") | 997.9 mm(39.3") | |||||||
| RIBBON | |||||||||
| Width | - | 40 mm to 110 mm(1.57" to 4.33") | |||||||
| Length | - | 300 m(984.25') | |||||||
| MEDIA | |||||||||
| Alignment | Centred | ||||||||
| Media (backing paper) Width | 25.4 mm to 118.0 mm(1.00" to 4.64") | 32 mm to 102 mm(1.26" to 4.01") | 25.4 mm to 118.0 mm(1.00" to 4.64") | ||||||
| Label Thickness | 0.06 mm to 0.19 mm(0.0024" to 0.0074") | ||||||||
| Inner Media Core Diameter | Standard: 25.4 mm, 38.1 mm, 42 mm(1.0", 1.5", 1.65") Optional: 76.2 mm(3.0") |
38.1 mm(1.5") | Standard: 25.4 mm, 38.1 mm, 42 mm(1.0", 1.5", 1.65") Optional: 76.2 mm(3.0") |
||||||
| Outer Media Roll Diameter (max.) | Standard: ?127 mm(?5.0") Optional: ?214 mm(?8.4") |
?107 mm(?4.21") | Standard: ?127 mm(?5.0") Optional: ?214 mm(?8.4") |
||||||
| Media format | Roll, fanfold | ||||||||
| SOFTWARE & CONNECTIVITY | |||||||||
| Emulations | ZPL II, DPL, SBPL, EPL2, IPL | ||||||||
| Printer Driver | Windows 11, Windows 10(32/64 bit), Windows Server 2019/2016/2012 R2/2012, Linux, macOS, SAP | ||||||||
| Interface | USB 2.0, USB Host, Ethernet 10/100 Base T (IPv4 & IPv6), WLAN 802.11a/b/g/n (dual band for 2.4 GHz/5GHz)1)2), Bluetooth V2.1 EDR with MFi certified1)2), serial port1) | USB 2.0, USB Host, Ethernet 10/100 Base T (IPv4 & IPv6), WLAN 802.11a/b/g/n (dual band for 2.4GHz/5GHz)1)2), Bluetooth V5.2 BR/EDR with MFi certified1)2), Serial port1) | |||||||
| OPTIONS | |||||||||
| Full cutter module, partial cutter module, peel-off module, serial interface board, wireless LAN module, Bluetooth module, AC adapter cover, external media stand | Serial interface board, wireless LAN module, Bluetooth module, AC adapter cover | UHF RFID kit, full cutter module, partial cutter module, peel-off module, serial interface board, wireless LAN module, Bluetooth module, AC adapter cover, external media stand, print head kits for resolution change | Full cutter module, partial cutter module, peel-off module, serial interface board, wireless LAN module, Bluetooth module, AC adapter cover, external media stand, print head kits for resolution change | ||||||
*1: Optional
*2: Availability varies from country to country
